Heavy-Duty Spherical Rod End Ball Joint (Mechanical Linkage Type)

Heavy-Duty Spherical Rod End Ball Joint (Mechanical Linkage Type)

【 Product Description 】

This spherical rod end ball joint is a robust mechanical component designed for high-load linkage systems (e.g., industrial machinery, vehicle controls, or equipment actuators). It features a steel housing, precision-machined ball stud, and sealed construction to enable smooth multi-directional rotation while withstanding vibration, shock, and harsh operating environments. The zinc-plated finish ensures corrosion resistance, making it ideal for long-term outdoor or heavy-duty use.

【 Applications 】

•Industrial Machinery: Conveyor systems, robotic arms, and packaging equipment linkages.

•Automotive/Heavy Vehicles: Gear shift mechanisms, suspension control arms, and liftgate actuators.

•Agricultural Equipment: Tractor linkage systems, harvester control levers.

•Construction Tools: Crane control rods, excavator hydraulic arm joints.

【Features】

•Durable Construction: Crafted from high-strength steel to handle rigorous driving conditions.

•Corrosion-Resistant: The black oxide or zinc-plated coating ensures long-lasting protection against rust and environmental wear.

•Smooth Operation: Designed for precise steering response, contributing to the overall smoothness of vehicle handling.

•Easy to Install: Engineered for a quick and straightforward installation with standard threaded connections.

•Compatibility: Available in various sizes, ensuring compatibility with a wide range of vehicle models.

【Working Principle】

The ball joint functions as a pivot between two linked components: the hardened steel ball stud (attached to one part) rotates freely within the spherical steel housing (connected to another part). This allows angular movement in multiple directions while transmitting force between the linked parts. The sealed housing retains lubricant (pre-applied) to minimize friction and wear, ensuring consistent performance over time.

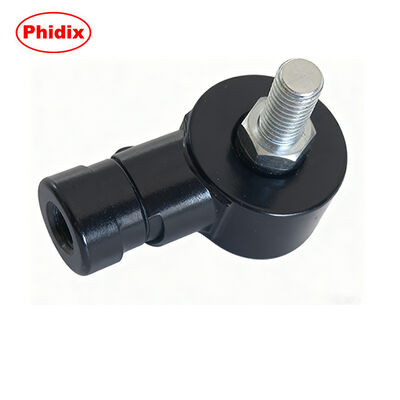

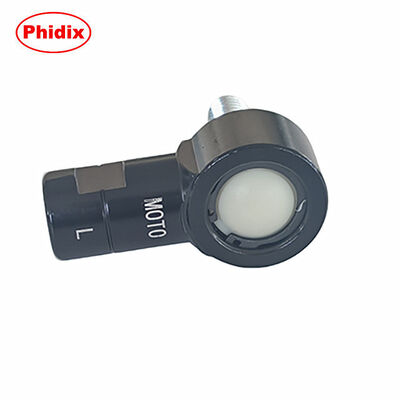

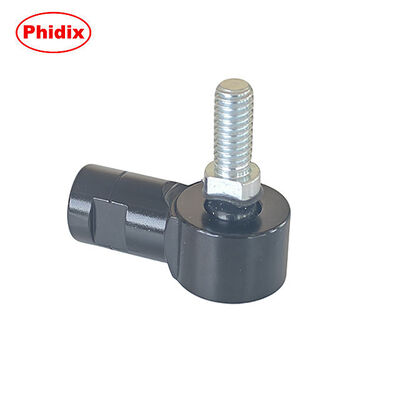

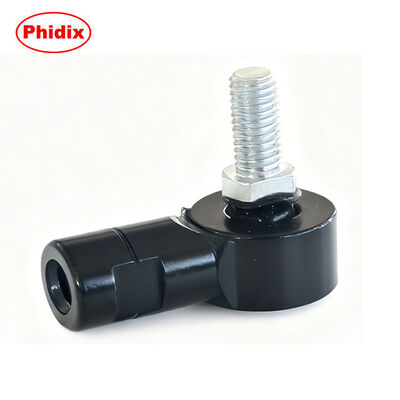

【Real Picture】
