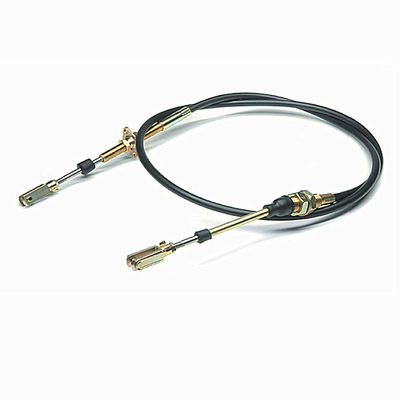

Long Service Life Push Pull 4B Industrial Control Cable Assembly for Throttle Shift Trim

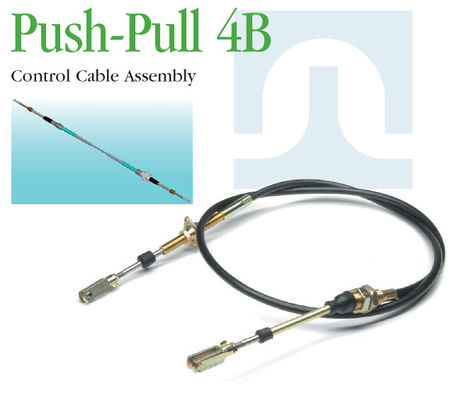

[Pull-Pull 4B, Control Cables]

Description:                      Applications:                                  Features:

Push-Pull 4B                      • Clutch controls                                 • Truck crane — cross link system
Industrial Control                • Heavy duty lanyards                        • In conjunction with most
Cable Assembly                                                                               control lever systems

                                                                                                      • Power take off

                                                                                                      • Gear selection

                                                                                                      • Hydraulic valve systems

Material:                                  End Fittings:                               • Accelerator systems

• Plated Steel                             • Rod Ends                                  • Stainless steel end rod

  Standard, Optional                                                                            options available

  Stainless Steel

• Plastic Coated

   High Tensile Steel
   Lined Conduit
• Armored Push-Pull Steel
   Innermember
• Black
   polypropylene

 [Push-Pull Industrial]

Commercial, cost effective product range for simple push-pull applications. Available in four different sizes. The inner member consists of a multi-strand high tensile steel cable, which is overwound with an armored covering to prevent spreading under compressive loads. This also gives a smooth surface for  low-friction sliding action.

The conduit consists of low-friction hard plastic, reinforced by high tensile steel wires, of sufficient number and size to completely surround the plastic. The wires are laid longitudinally with a gradual spiral. Black UV stabilized polypropylene is extruded over the whole in a thickness sufficient to provide a tough hard-wearing jacket which will withstand working stressed between -40°C and 100°C.
It is highly resistant to abrasion and most organic and inorganic media. Available with swivel flange, in both metric and UNF thread mounting fittings.

[Push-Pull 4B Specifications]

Push-Pull 4B30 — M5

Push-Pull 4B60 — M10

Push-Pull 4B45 — M8

Push-Pull 4B45 — M6

All line art dimensions are represented as follows: in (mm)

[Push -Pull 4B Order Code]
