[Pull-Only Clutch Control Cables]
Description: Applications: Features:
Pull-Only Clutch • Clutch controls • Custom engineered assembly
Industrial Control • Heavy duty lanyards • Installed bend radius
Cable Assembly down to 5"
• Nylon covered innermember
• Plastic covered conduit
Material: Added Features:
• Nylon Covered • Sealed
Innermember • Economical
• Plastic Covered • Lubed for Life
Conduit
[ Pull-Only Industrial]
A flexible control designed to transmit pull motion between two mechanical devices without the use of rods, bellcranks, or other rigid mechanical linkage. Pull controls are specifically designed for applications which require a high load capability and low deflection. The cable often used for operating a vehicle parking brake is a typical example. Simple to install and easy to maintain, versatile pull controls are found on many types of mechanical equipment.
[Pull-Only Clutch Specifications]
High quality replacements for most cab-over engine vehicles and other similar applications.
Built to specifications by your local cable assembler.
Generic clutch replacement cables HD conduit, special clutch innermember

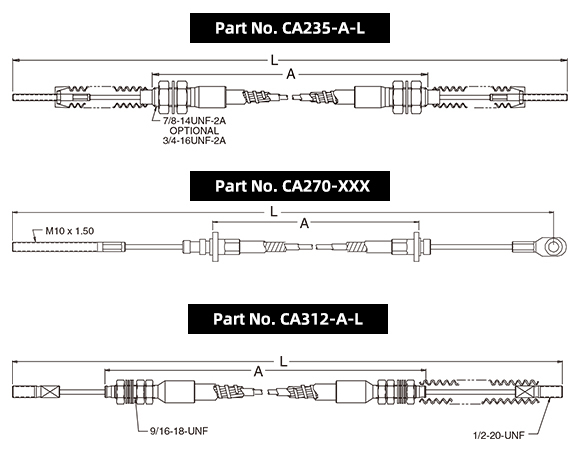

Part No. CA235-A-L (5/16-24 end rods)
Part No. CA236-A-L (3/8-24 end rods)
General Motors® style clutch cable. 1500lb brake conduit and innermember
Part No. CA270-XXX (XXX = Dash number, see table below)
GM is a registered trademark of General Motors.
General Motors® style clutch cable. 1500lb brake conduit and innermember
Part No. CA271-A-L (A = Conduit length; L = Length overall)

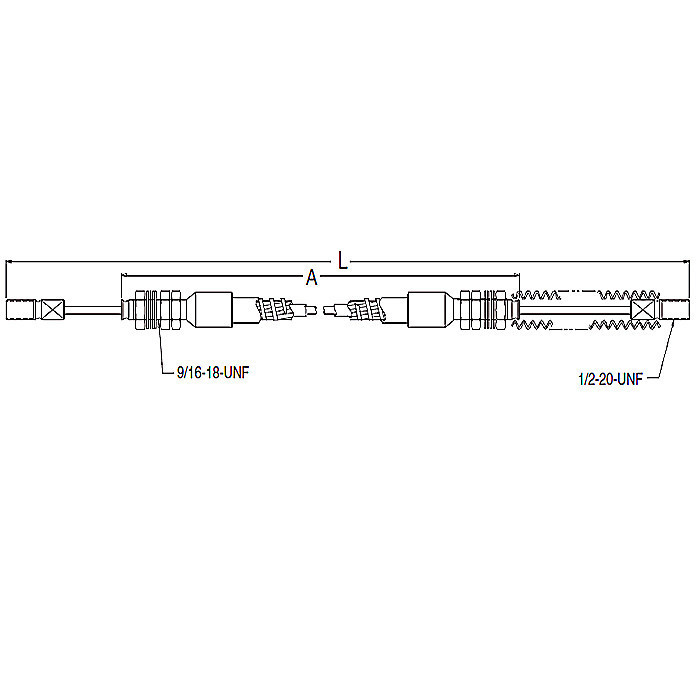

Mack Truck® style clutch cable. HD conduit and special clutch innermember
Part No. CA312-A-L (A = Conduit length; L = Length overall; see table below)
Mack Truck® style clutch cable. HD conduit and special clutch innermember
Part No. CA312-A-L (A = Conduit length; L = Length overall)
All line art dimensions are represented in inches
[Pull- Only Clutch]
High Performance Clutch Cables
See “Push-Pull Cable Specifications” for mid-travel dimensions.
HD conduit, brake/clutch innermember 500lb pull-only operating load.
Order Code: T = Travel 2"- 6" L = Length overall
Part No. A183-400-T-L (5/16-24 end rods MD) Grooved-Grooved
Part No. A183-111-T-L (3/8-24 end rods HD) Grooved-Grooved
Part No. A183-401-T-L (5/16-24 end rods MD) Grooved-Threaded 11/16-16
Part No. A183-110-T-L (3/8-24 end rods HD) Grooved-Threaded 7/8-14
Part No. A183-402-T-L (5/16-24 end rods MD) Threaded-Threaded (both ends 11/16-16)
Part No. A183-104-T-L (3/8-24 end rods HD) Threaded-Threaded (both ends 7/8-14)
